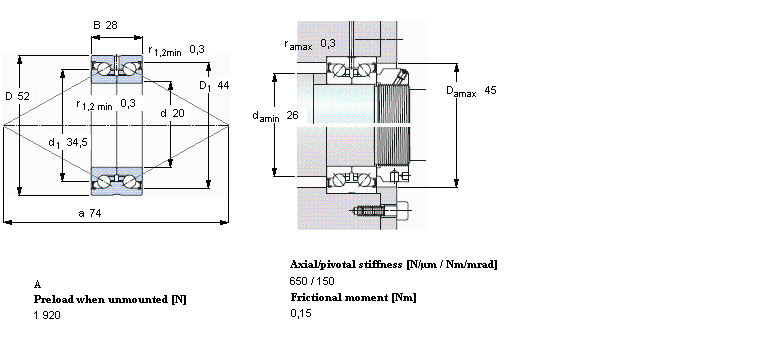

軸承型號:BEAS020052-2Z/PE
| 角接觸推力球軸承 for screw drives, double direction | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
|
||||||||||
| 主要數(shù)據(jù)尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態(tài) | 靜態(tài) | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 52 | 28 | 26 | 46,5 | 1,73 | 6000 | 0,31 | BEAS 020052-2Z/PE | BEAS 20/52/Z SQP60 | |
